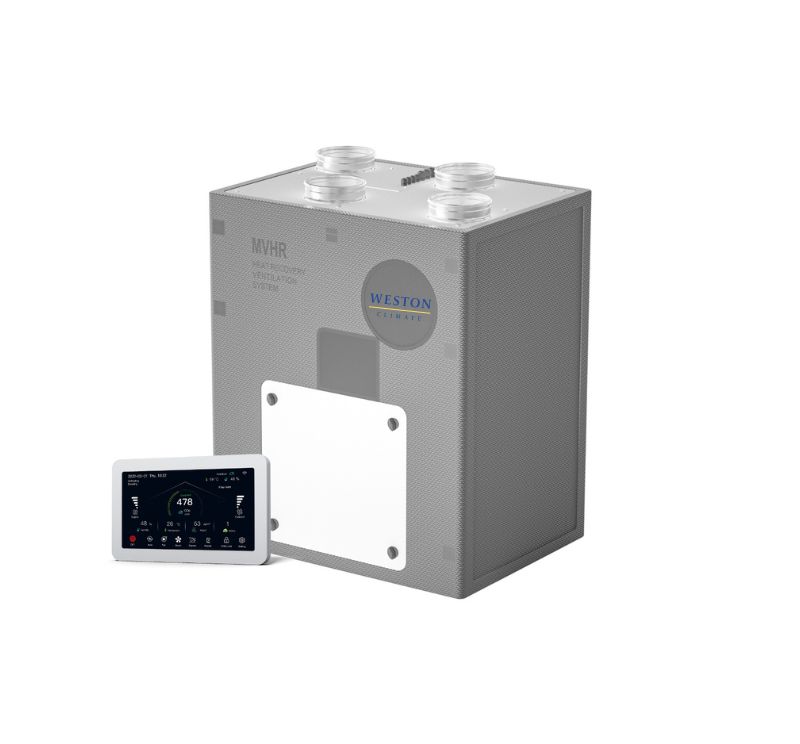

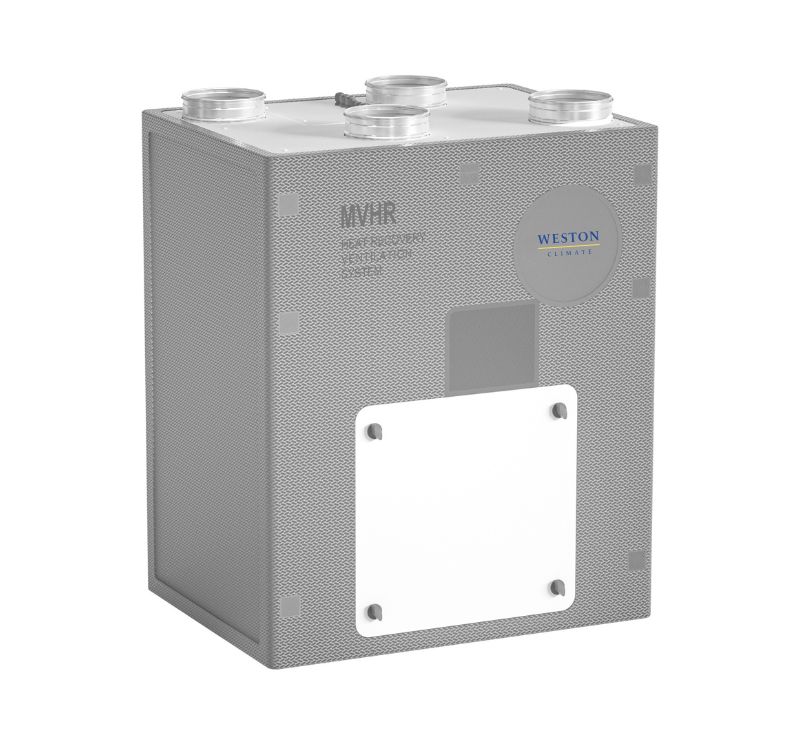

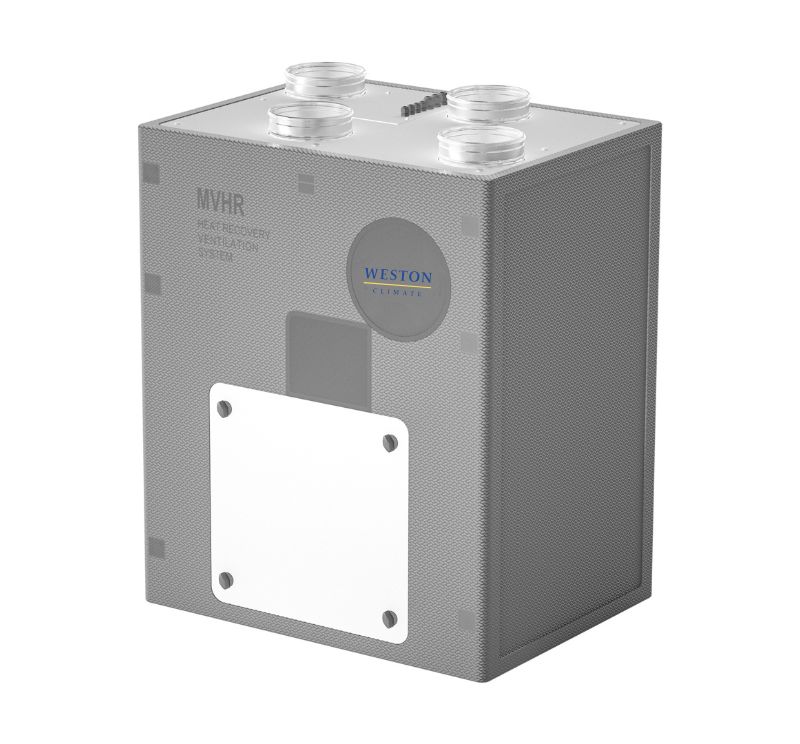

Weston Climate TP TH series 350-500m3 heat recovery ventilation unit

WCE-TP TH 350-VK2/VK8_

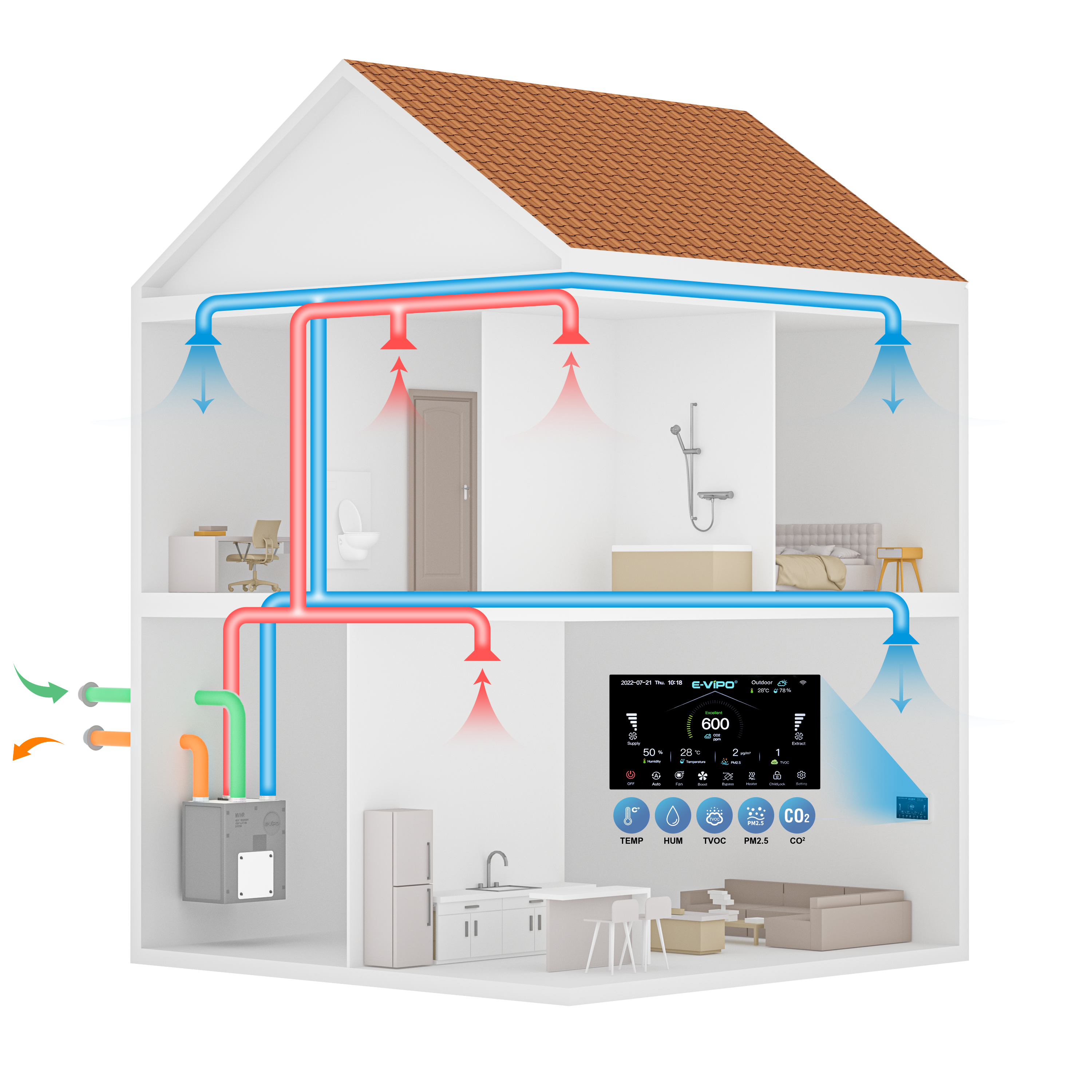

With thermal adjustment Weston Climate TP TH series 350-500m3 heat recovery ventilation unit Suitable for use in medium to large private homes, offices, public rooms, gyms, medical facilities, shops, hotels, educational institutions, catering facilities, etc. The equipment has been ordered and adapted to European and Scandinavian requirements. The construction of the unit is based on high quality materials, which guarantee the TP THERMAL SERIES perfect and extremely quiet operation. Modern technology guarantees the reliability and long life of the unit. The installation of the TP THERMAL SERIES is made very easy and within the reach of any keen family man or woman.

Delivery time up to 5 working days.

Price range: 4062 € through 4256 € (inc. tax)

Features:

  • High static pressure, energy-saving electronically commutated (EC) motor
  • Energy efficiency up to 97%
  • Standard summer bypass integration
  • Automatic cold protection
  • 30mm-45mm internal thermal and sound insulation
  • Superlative performance
  • Vertical and horizontal installation

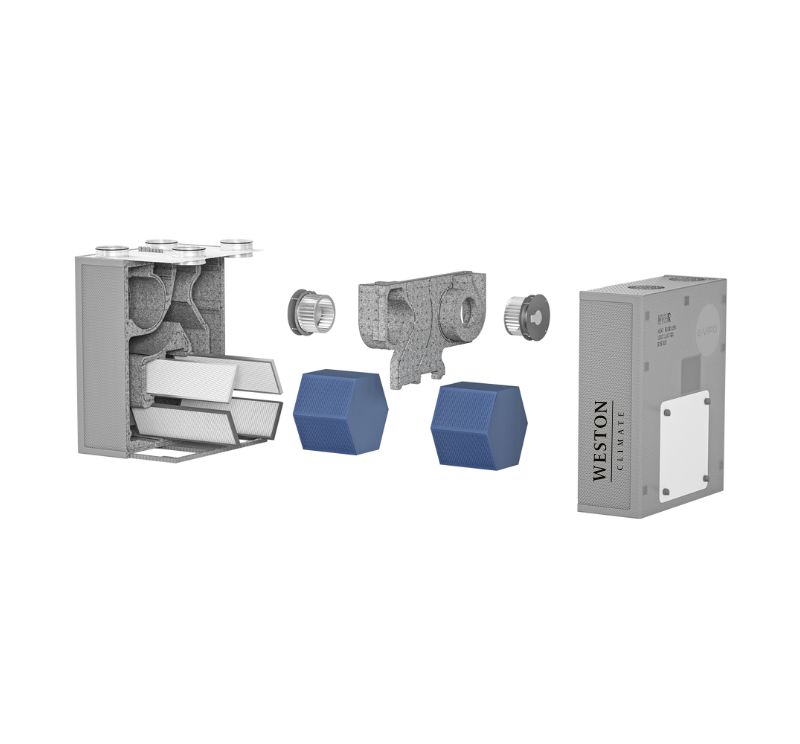

  • Maintenance panels on each side
  • Suitable for both left and right-hand installation
  • Indoor temperature/ relative humidity sensors
  • Optional integration of electric heaters
  • Compact and handy design
  • Compliance: EU1253/2014 ErP2016 ErP2018 EcoDesign
  • Energy label A+
Control functions:
  • Integrated management system
  • HD 7-inch colour touch screen with real-time indoor air quality display
  • Local demand management with variable speed
  • Modbus RS485 smart house connection
  • IAQ (Indoor Air Quality) sensors CO2/PM2.5/vOCs/TEMP/RH
  • Proposed weekly operation
  • Optional separate fan control
  • Connection of multiple external CO2/RH/TEMP sensors
  • Connection of multiple external boost switches
  • Inlet/Fusion/IAQ automation
  • Available with remote control
  • Filter reverse reading/replacement notification
  • Full settings on the control panel
Technical information:
  • Type of ventilation motor: EC
  • Max air flow(m3/h): 350@100Pa / 400@100Pa / 450@100Pa / 500@100Pa / 550@100Pa / 600@100Pa
  • Max rated power: 230V-50Hz; 115W; 0.9A / 230V-50Hz; 150W; 1.1A / 230V-50Hz; 190W; 1.3A / 230V-50Hz; 250W; 1.7A / 230V-50Hz; 320W; 2.1A / 230V-50Hz; 390W; 2.6A.
  • Power input range: 200-240 V; 50/60Hz
  • Weight (kg): 47,5
  • Filter: G4
  • Power supply filter: G4, F8 (optional)
  • Max static pressure (Pa): 575 / 707 / 720 / 720 / 720 / 725

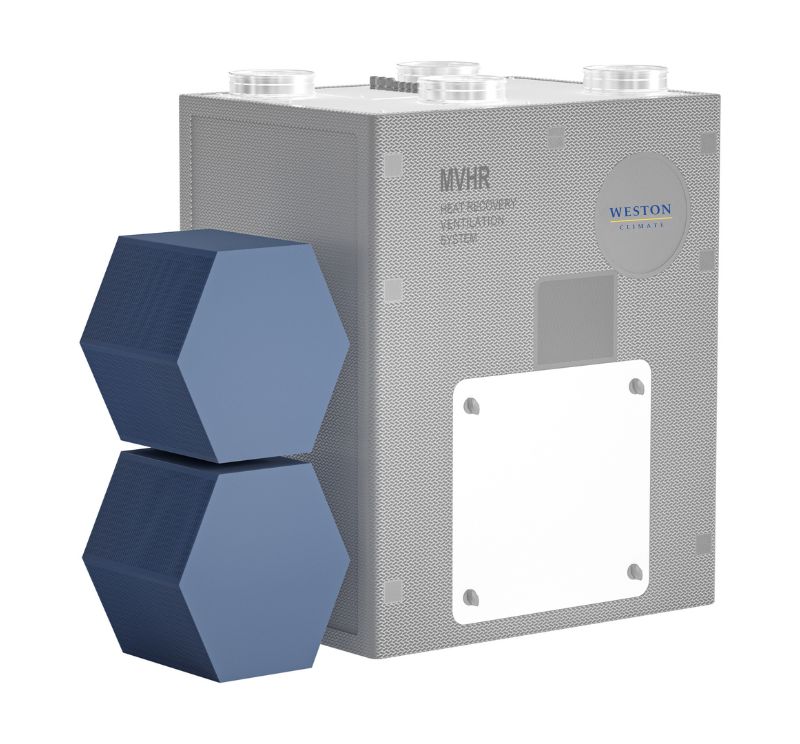

  • Type of heat exchanger: Counterflow
  • Heat exchanger material: enthalpy
  • Energy efficiency (%): 89-97 / 87-97 / 84-97 / 81-97 / 78-97 / 75-97
  • Internal insulation material: EPP
  • Body material: EPP
  • Temperature of transmitted air (C): -25 to +50
  • Working environment temperature (C): +5 to +40
  • Relative humidity of the working environment (%): below 80

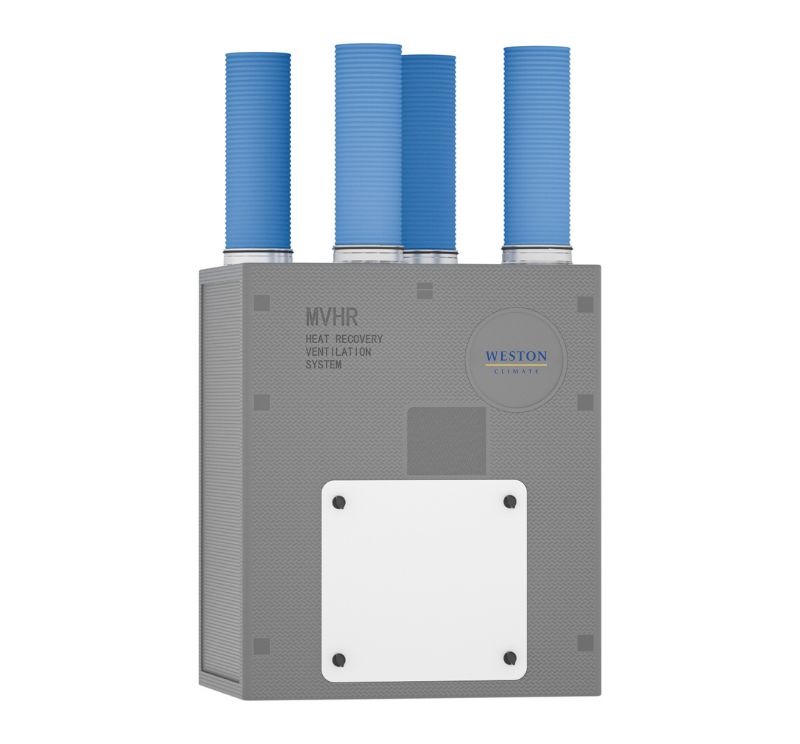

  • Connected air duct diameter (mm): 160

Additional information

Weight 47,5 kg
Dimensions 0,82 × 0,62 × 0,97 m
Guarantee

7 years

Manufacturer

Weston Climate

Color

Hall

Recommended surface area (m2)

160-190, 180-220, 210-250, 240-280, 270-300, 290-330

Recommended volume (m3)

430-510, 490-590, 570-680, 650-760, 730-810, 780-890

Air flow (m3/h)

500, 450, 400, 350

Control panel

VK2, VK8
